Reloading the .327 Federal Magnum

January 04, 2011 By Lane Pearce

By Lane Pearce

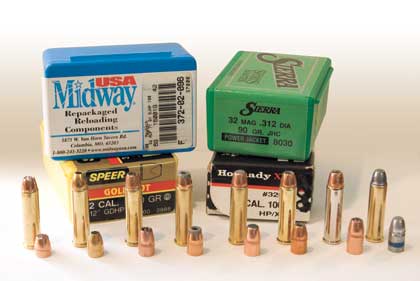

Many readily available .32-caliber bullets are suitable for handloading in the .327 Federal Magnum, current Lyman and RCBS .32 die sets will accommodate the new round, and load data is now available from Hodgdon.

Looking back at my recent columns, I noticed I hadn't written much about reloading handgun cartridges. That's probably because the market bias has been toward new rifle products. However, the new .327 Federal Magnum presents the opportunity to share reloading information for an effective personal-defense round and an excellent hunting round for small game and varmints.

First of all, I confess that I like revolvers, especially single-actions. As I've gotten older, shooting big-bore, magnum firearms has become less interesting to me as it used to be. Actually, I became a fan of .32-caliber revolvers soon after Federal introduced the H&R Magnum almost 20 years ago. Back then, I bought an early-production Ruger Single-Six Magnum and, at my wife's request, mounted a 2.5X Bushnell scope on it. Shooting five-shot, 25-yard groups under an inch from the bench soon became the norm. I eventually added several S&W and Dan Wesson double-actions and .32-20 single-actions to my repertoire.

Of course, other projects took precedent, so I hadn't fired any of them for quite a while. I visited CCI-Speer last year and learned about the new .32-caliber magnum handgun cartridge they and Federal were co-developing. As the moniker suggests, the earlier .32 H&R Magnum's performance specs were tailored for Harrington & Richardson's less-than-robust small-frame revolvers. That's why the .32 H&R's maximum operating pressure (MAP) of about 22,000 psi is substantially lower than typical .357, .41, and .44 Magnum levels at approximately 35,000 psi.

The new .327 Federal round is a stretched version of the .32 H&R round, having a case about 1/8 inch longer. It has a thicker web at the base of the case, and heat-treatment is different. It has different metallurgy to accommodate the significantly increased operating pressures. At a whopping 45,000 psi, the .327 Federal's MAP is nearly 30 percent greater than the aforementioned magnums and double that of the H&R Magnum. Ruger's rugged SP101 compact revolver was selected as the development platform for the new round. As you can see in the accompanying charts, ballistic performance of the three available factory loads is impressive. In fact, the .327 Fed. Mag. nudges .357 Mag. energy levels with approximately 20 percent less recoil.

Soon after Federal officially announced the new round, I ordered an SP101. I also had Hamilton Bowen make a .327 Fed. Mag. cylinder for an old model Ruger .357 Blackhawk that he had converted to .32-20 several years ago. What a deal: a custom, .32-caliber, single-action convertible! When I received the retrofitted revolver, I only hoped I could match Bowen's excellent workmanship with comparable performance at the range.

But first, there was just one little problem: There was no .327 Fed. Mag. loading data. And there wasn't anything closely comparable from which I could safely extrapolate suitable recipes. I had several different bullets to load, including a roundnose, flatpoint Magnus cast bullet. Federal and Speer sent factory ammo, a double handful of primed brass, and even samples of three factory bullets. I shot up most of the factory ammo in the SP101, but there was just enough left to shoot a few five-shot groups in the custom Ruger Blackhawk.

To get started, I rationalized that the .32-20 case had about the same volume, so I checked out earlier editions of Lyman's reloading manuals for .32 WCF, high-velocity data. Generous charges of 2400 or Unique and lighter bullets seemed most appropriate. Fortunately, before I could get into too much trouble, Chris Hodgdon sent out an announcement that Hodgdon's online Reloading Data Center (RDC) had new information for the .327 Fed. Mag. A quick look suggested other promising candidates like Hodgdon Lil'Gun, IMR SR4756, and Winchester 231.

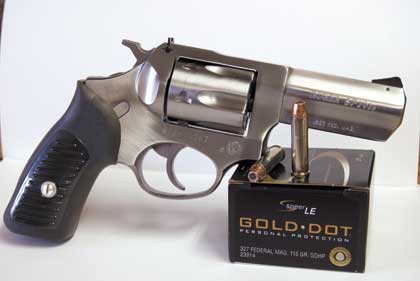

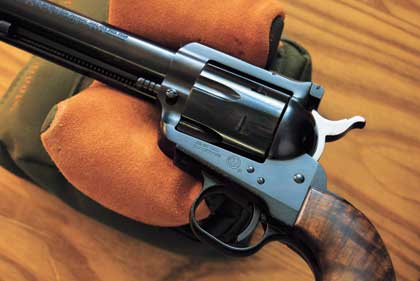

Lane used a factory-original SP101 and an old model Blackhawk customized by Hamilton Bowen for test-firing his .327 Federal Magnum handloads.

A week or so later, I called reloading guru Bob Forker. While we were chatting, I discovered he was working on a similar project. He had a 6-inch pressure barrel and was waiting for a Ruger SP101. I sent him some samples of the factory bullets, and he offered to share the pressure test results. Sure enough, a week or so later, he e-mailed a chart of .327 Fed. Mag. recipes he had developed using an Oehler Model 43 PBL ballistic-testing system. The limited load data situation had improved significantly.

I eventually assembled, fired, cleaned, trimmed, reloaded, fired, cleaned, etc., more than 500 .327 Fed. Mag. handloads. I initially shot both guns off bags at big targets mounted 25 yards from the bench. Then I mounted the SP101 in a Caldwell HAMMR machine rest to avoid the aging-eyes factor, and I chronographed every shot. I e-mailed the data to Forker before calling him to discuss the preliminary results. However, instead of talking about reloading, the conversation immediately segued into politics.

Forker lives in California, and it seems that the responsible government agency hasn't yet performed the mandatory safety assessment of this "new" Ruger revolver. Only after the state approves the SP101 in .327 Fed. Mag. can Forker provide said certificate of approval to Ruger so the company can ship a T&E gun to him. The logic that this model is only slightly different from the half-dozen other SP101 variations Ruger may have shipped to California during the past 20 years doesn't wash.

Our collaboration on the .327 Fed. Mag. loading projects seemed to be in order.

table#specialTable {padding: none;background: black; font-family: Arial,Helvetica, sans-serif;text-align: left;font-size: 11px;}table#specialTable tr {color: red; background:blue;}#specialTable td {margin: 2px; padding: 2px; background: #cccccc; color:black;border-right: 1px solid black; border-bottom: 1px solid black;}#specialTable td.noright {margin: 2px; padding: 2px; background: #adadad;color: black;border-right: none;border-left: none; border-bottom: 1px solidblack;}#specialTable td.noleft {margin: 2px; padding: 2px; background: #adadad;color: black;border-right: 1px solid black;border-left: none; border-bottom:1px solid black;}#specialTable td.noborder {margin: 2px; padding: 2px; background: #669966;color: black ;border-right: none; border-bottom: 1px solid black;}#specialTable th {margin: 2px; padding: 2px; background: #ffffff; color:black;font-family: Verdana, Arial, Helvetica, sans-serif;text-align:left;font-size: 9

px;}#specialTable tr.offcolor td { background: #ffffff;}#specialTable tr.footer {}#specialTable td.footer {}#specialTable h3 { margin: 0; padding:0;font-size: 15px; border-bottom: 2pxsolid #669966;}.bottom { 2px solid black;}

.327 Fed. Mag. In 3 1/16-Inch Barreled Ruger SP101
	Powder
Bullet	Type	Grs.	Primer	Velocity (fps)	Extreme Spread (fps)	Standard Deviation (fps)	25-Yard Accuracy (in.)	Comment
Hornday 60-gr. XTP-HP	AA #5	10.5	CCI 500	1566	20	7	2.80
Speer 60-gr. Gold Dot	Unique	10.0	CCI 500	1646	150	56	1.10	Easy eject.
Speer 60-gr. Gold Dot	WAP	10.8	CCI 500	1861	131	41	1.20	Hard eject, flat primers.
Magtech 71-gr. JHP	W540	9.7	CCI 500	1406	158	41	1.50
Federal 85-gr. Hydra-Shok	W540	9.0	Fed. 205	1383	36	9	N/D	Rest loose.
Federal 85-gr. Hydra-Shok	W540	9.1	Fed. 100	1326	68	22	1.70
Speer 85-gr. JHP	W540	9.1	Fed. 100	1320	62	22	0.90	Snug eject; flat primers.
Sierra 90-gr. JHC	AA #7	10.2	Fed. 205	1325	70	21	1.80
Sierra 90-gr. JHC	SR4756	9.2	Fed. 205	1416	53	17	N/D	Rest loose.
Sierra 90-gr. JHC	VV 3N37	8.8	CCI 500	1429	71	22	3.00	Snug eject; flat primers; too hot.
Hornady 100-gr. XTP-HP	HS 6	8.4	CCI 500	1268	40	16	1.70
Hornady 100-gr. XTP-HP	Lil'Gun	14.0	Fed. 205	1101	157	68	N/D	Rest loose.
Hornady 100-gr. XTP-HP	VV N350	8.9	CCI 500	1479	109	31	1.00	Snug eject; flat primers; too hot.
Speer 100-gr. JHP	VV N350	8.9	Fed. 205	1405	26	9	2.10	Hard eject; flat primers; too hot.
Speer 100-gr. Uni-Cor	HS 7	9.5	CCI 500	1297	64	22	1.40
Speer 100-gr. Uni-Cor	Lil'Gun	14.0	CCI 500	1167	68	26	1.20
Speer 100-gr. Uni-Cor	W540	7.6	Fed. 205	1093	28	15	3.40
Speer 115-gr. Gold Dot	AA #9	12.8	WSP	1368	58	20	0.90
Speer 115-gr. Gold Dot	SR4756	5.8	Fed. 205	1117	18	6	N/D	Rest loose.
Magnus 116-gr. RN-FP	700-X	4.1	Fed. 205	1167	36	17	1.60	Once-fired brass.
Magnus 116-gr. RN-FP	HP 38	4.5	Fed. 205	1168	36	13	2.10	Once-fired brass.
Magnus 116-gr. RN-FP	HP 38	5.2	Fed. 205	1142	21	9	N/D	Rest loose.
Magnus 116-gr. RN-FP	SR4756	5.8	Fed. 205	1171	32	9	N/D	Rest loose.
Magnus 116-gr. RN-FP	Titegroup	4.1	Fed. 205	1188	33	9	1.90	Once-fired brass.
Magnus 116-gr. RN-FP	Trail Boss	4.0	Fed. 205	833	137	39	1.80	Once-fired brass.
Magnus 116-gr. RN-FP	W231	4.5	Fed. 205	1175	81	21	2.30	Once-fired brass.
Federal PD 85-gr. Hydra-Shok	Factory Load			1414	61	21	N/D	Rest loose.
American Eagle 100-gr. Uni-Cor	Factory Load			1499	55	18	N/D	Rest loose.
Speer PP 115-gr. Gold Dot	Factory Load			1361	60	19	N/D	Rest loose.
Notes: All data are based on at least 10 rounds of each load. Accuracy is for one 10-shot group with the SP101 fired from a Caldwell HAMMR machine rest. No data (N/D) when rest was not adjusted properly. Factory ammo used Federal factory primed brass with Federal 205 primers.

tr.footer {}#specialTable td.footer {}#specialTable h3 { margin: 0; padding:0;font-size: 15px; border-bottom: 2pxsolid #669966;}.bottom { 2px solid black;}

.327 Fed. Mag. In 7 1/2-Inch Custom Ruger Blackhawk
	Powder
Bullet	Type	Grs.	Primer	Velocity (fps)	Extreme Spread (fps)	Standard Deviation (fps)	25-Yard Accuracy (in.)
Speer 60-gr. Gold Dot	Unique	10.0	CCI 500	1900	127	37	2.40
Speer 60-gr. Gold Dot	WAP	10.8	CCI 500	2063	139	51	2.50
Magtech 71-gr. JHP	W540	9.7	CCI 500	1774	118	33	2.30
Federal 85-gr. Hydra-Shok	SR4756	7.4*	Fed. 100	1524	45	16	2.20
Federal 85-gr. Hydra-Shok	W540	9.1	Fed. 100	1585	85	28	2.00
Sierra 90-gr. JHC	AA #7	10.2	Fed. 205	1568	74	20	1.70
Sierra 90-gr. JHC	VV 3N37	8.8	CCI 500	1600	48	16	2.60
Hornady 100-gr. XTP-HP	HS 6	8.4	CCI 500	1471	70	25	1.60
Hornady 100-gr. XTP-HP	VV N350	8.9	CCI 500	1598	69	19	2.00
Speer 100-gr. JHP	VV N350	8.9	Fed. 205	1582	56	15	1.70
Speer 100-gr. Uni-Cor	HS 7	9.5	CCI 500	1517	79	25	1.90
Speer 100-gr. Uni-Cor	Lil'Gun	14.0	CCI 500	1268	120	39	1.70
Speer 115-gr. Gold Dot	AA #9	12.8	WS P	1556	62	17	1.80
Magnus 116-gr. RN-FP	700-X	4.1	Fed. 205	1167	36	17	1.60
Magnus 116-gr. RN-FP	HP 38	4.5	Fed. 205	1168	36	13	2.10
Magnus 116-gr. RN-FP	PB	4.3	Fed. 205	1147	40	13	1.90
Magnus 116-gr. RN-FP	SR4756	5.0	Fed. 205	1183	50	16	1.40
Magnus 116-gr. RN-FP	Titegroup	4.1	Fed. 205	1188	33	9	1.90
Magnus 116-gr. RN-FP	Trail Boss	4.0	Fed. 205	833	137	39	1.80
Magnus 116-gr. RN-FP	W231	4.5	Fed. 205	1175	81	21	2.30
Federal PD 85-gr. Hydra-Shok	Factory Load			1622	96	28	2.70
American Eagle 100-gr. Uni-Cor	Factory Load			1672	40	13	1.50
Speer PP 115-gr. Gold Dot	Factory Load			1517	77	22	1.80
*Hodgdon data lists 7.1 gr. maximum for this load.
Notes: All data are based on at least 10 rounds of each load. Accuracy is the average of at least two,-five-shot groups fired from a sandbag benchrest. Factory ammo used Federal factory primed brass with Federal 205 primers.

The range sessions proved successful--eventually. The first time I mounted the SP101 in the HAMMR rest, I forgot to pack my tools to adjust the rest. When it loosened up from the recoil, the groups did likewise, so I just recorded velocity data. When I finished with the SP101, I discovered I didn't have the right grip insert for the custom Blackhawk, so I had to shoot it the old-fashioned way--hand held on sandbags. Despite these minor hurdles, I developed several excellent loads for the two Ruger handguns.

One of the most impressive is Speer's 60-grain Gold Dot HP atop 10 grains of Unique. I rolled a cannelure on the bullets so I could lightly roll crimp them after seating. Load density is essentially 100 percent, and the muzzle velocities reflect the full case and light bullet combination. Later mounted in a properly adjusted HAMMR rest, the SP101 put 10 shots into 1.1 inches at 25 yards.

Accurate #9 and Speer's 115-grain Gold Dot HP proved to be a winning combination also. Federal's American Eagle 100-grain JSP factory ammo consistently delivered excellent performance.

The chart also lists several handloads that worked well in the custom Ruger single-action. Velocities ran from 100 to 250 fps faster in the Blackhawk's 71/2-inch barrel compared to the 31/16-inch-barreled SP101. I also tested a half-dozen or so cast-bullet loads in the Blackhawk using Hodgdon's RDC recommended recipes. As the chart shows, several of those performed quite well. In fact, while measuring them, I noticed that a single shot doubled the group size on several occasions. I'd like to think that Bowen misaligned one chamber, but it's more likely these old eyes.

.327 Fed. Mag. In 6-Inch Pressure Barrel
	Powder
Bullet	Type	Grs.	Primer	Velocity (fps)
Hornady 60-gr. XTP-HP	AA #5	10.5	WSP	2110
Hornady 60-gr. XTP-HP	SR7625	9.0	Fed. 100	2050
Speer 60-gr. Gold Dot	Unique	10.0	CCI 500	2000
Speer 60-gr. Gold Dot	WAP	11.0	Rem. 1 1/2	2140
Federal 85-gr. Hydra-Shok	SR4756	10.5	Rem. 1 1/2	1800
Federal 85-gr. Hydra-Shok	True Blu	9.0	WSP	1725
Hornady 85-gr. XTP-HP	VV N340	7.5	Rem. 1 1/2	1710
Hornady 85-gr. XTP-HP	W540	9.0	Fed. 100	1750
Sierra 90-gr. JHC	AA #7	10.5	Rem 1 1/2	1775
Sierra 90-gr. JHC	VV 3N37	8.8	Lapua SP	1700
Hornady 100-gr. XTP-HP	HS 6	8.5	Lapua SP	1575
Hornady 100-gr. XTP-HP	VV N350	9.0	CCI 500	1650
Speer 100-gr. Uni-Cor	HS 7	9.5	Lapua SP	1600
Speer 100-gr. Uni-Cor	Lil'Gun	14.0	CCI 500	1620
Speer 115-gr. Gold Dot	AA #9	12.8	WSP	1640
Speer 115-gr. Gold Dot	Enforcer	13.5	Rem. 1 1/2	1700
Federal PD 85-gr. Hydra-Shok	Factory Load			1685
Speer PP 115-gr. Gold Dot	Factory Load			1610
Notes: All data are based on at least 10 rounds of each load. Factory ammo used Federal factory primed brass with Federal 205 primers.
